Gel Battery

Capacity: 2V: 100 Ah to 3000 Ah; 12V: 12Ah ~ 250Ah
Charge voltage: Cycle use: 2.30~2.35V/cell; Float use: 2.23~2.27V/cell
Charge current: The initial current less then 0.3CA
Capacity:55~3000Ah
Volt: 6V, 12V

Specifications for the SPACEFLIGHT POWER Gel Battery:

Model	Nominal Voltage (V)	Rated Capacity C₁₀ (Ah)	Length (mm)	Length (in)	Width (mm)	Width (in)	Height (mm)	Height (in)	Total Height (mm)	Total Height (in)	Weight (±2%) Kg	Weight (±2%) lbs	Terminal Type
HTG6-100	6	100	194	7.64	170	6.69	205	8.07	205	8.07	15.80	34.83	F4
HTG6-190	6	190	243	9.57	187	7.36	253	9.96	253	9.96	31.00	68.34	F4

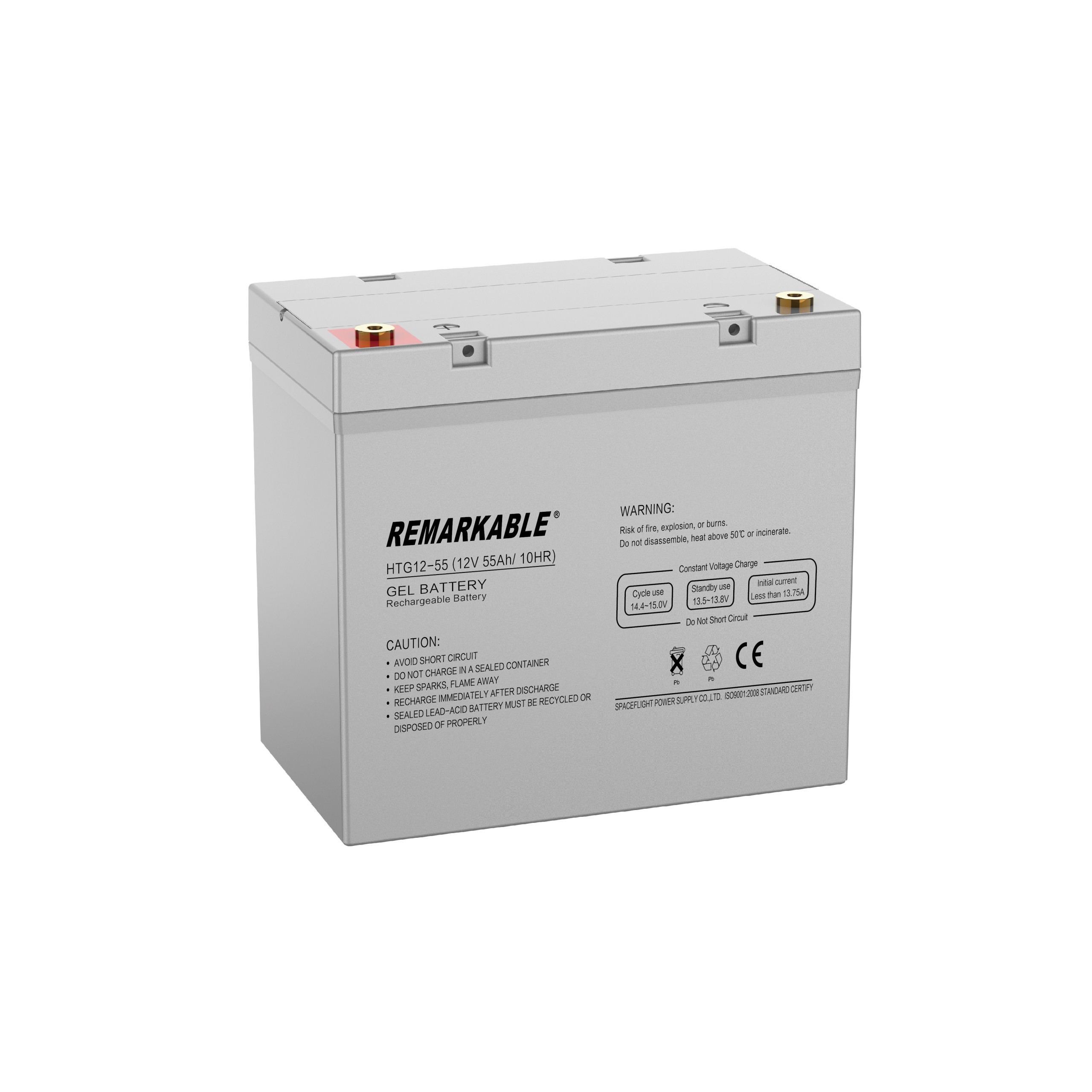

HTG12-55	12	55	229	9.02	138	5.43	210	8.27	210	8.27	17.00	37.48	F6

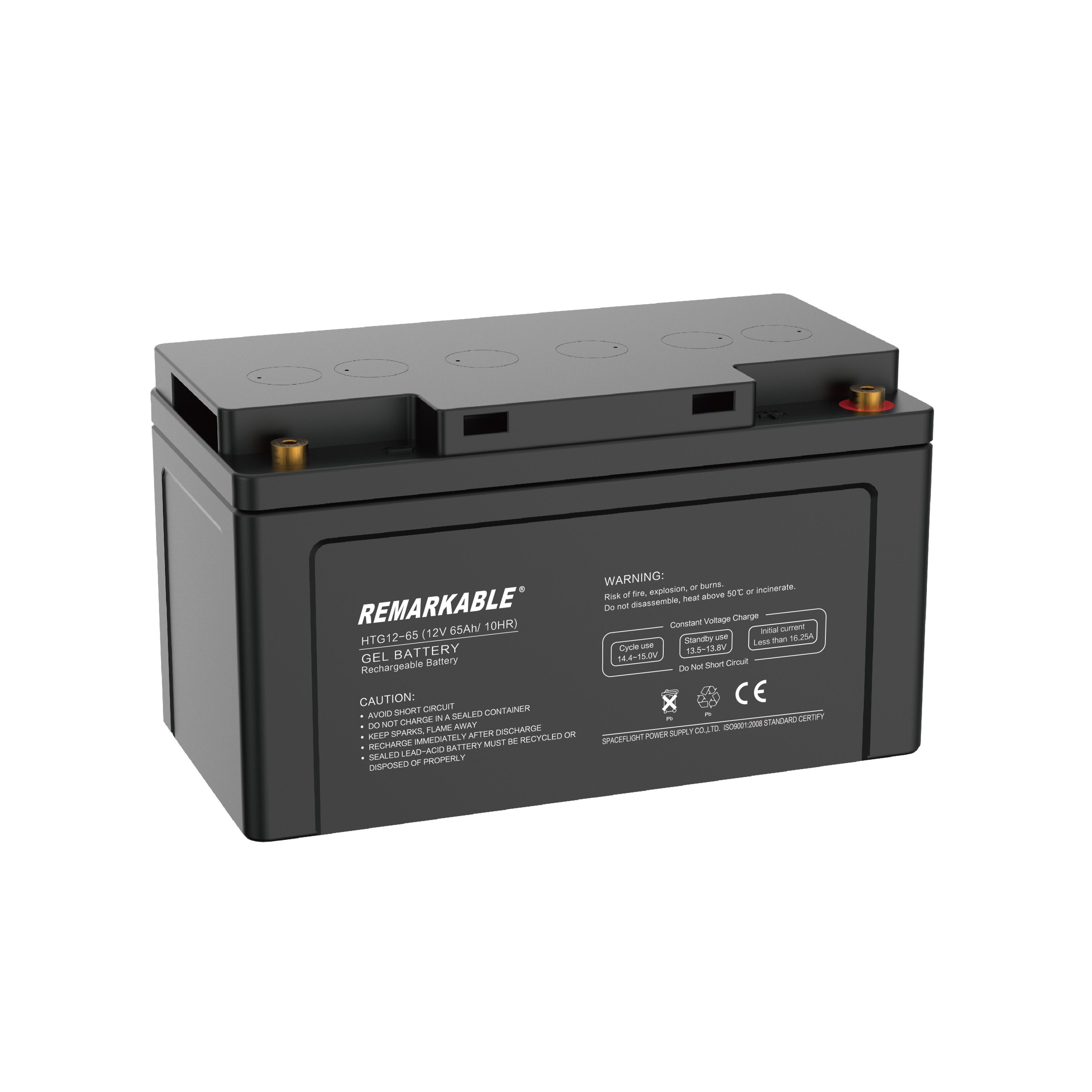

HTG12-65	12	65	351	13.82	166	6.54	179	7.05	179	7.05	21.00	46.30	F7
HTG12-70	12	70	260	10.24	168	6.61	209	8.23	227	8.94	24.00	52.91	F7
HTG12-80	12	80	350	13.78	166	6.54	178	7.01	178	7.01	27.50	60.63	F7
HTG12-90	12	90	307	12.09	169	6.65	208	8.19	227	8.94	28.50	62.83	F8/F14
HTG12-100	12	100	330	12.99	172	6.77	222	8.74	226	8.90	32.00	70.55	F8/F14

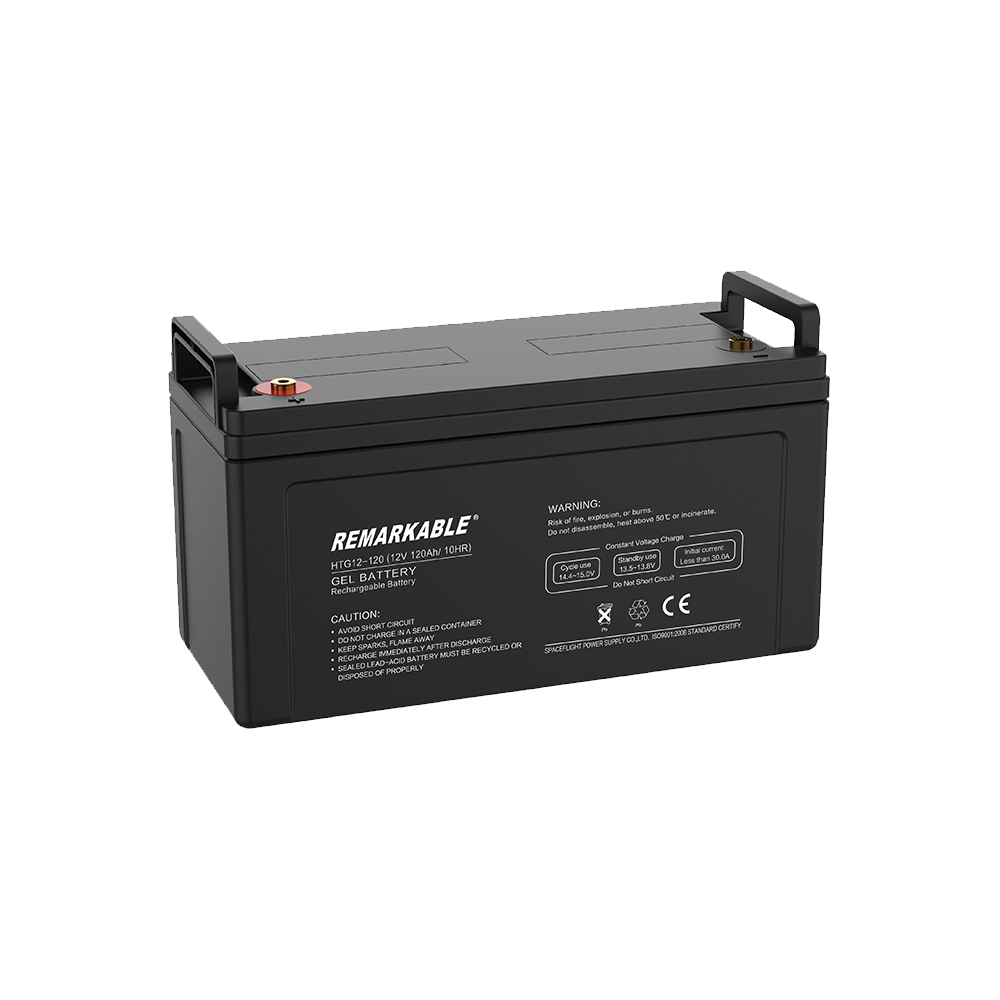

HTG12-120	12	120	408	16.06	174	6.85	209	8.23	238	9.37	36.50	80.47	F8/F14

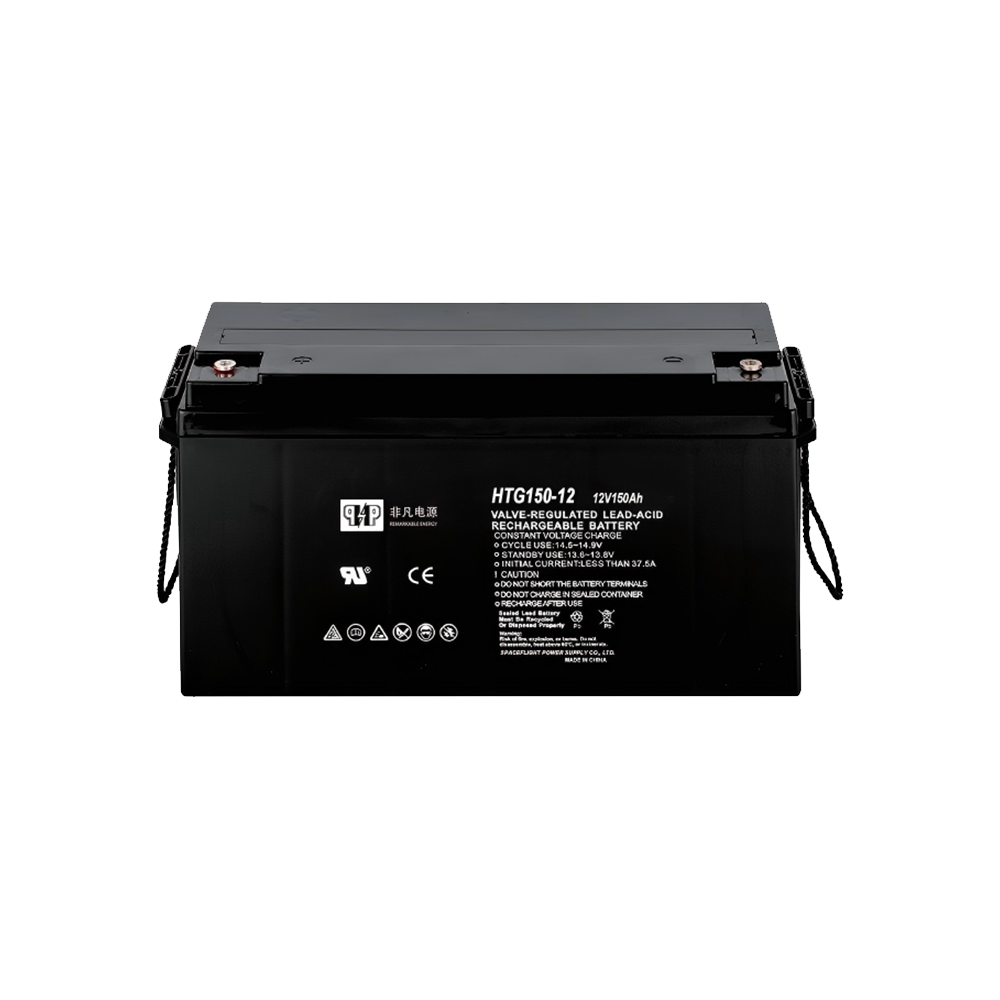

HTG12-150	12	150	485	19.09	170	6.69	240	9.45	240	9.45	44.00	97.00	F9/F15
HTG12-200	12	200	525	20.67	240	9.45	225	8.86	229	9.02	66.00	145.51	F10

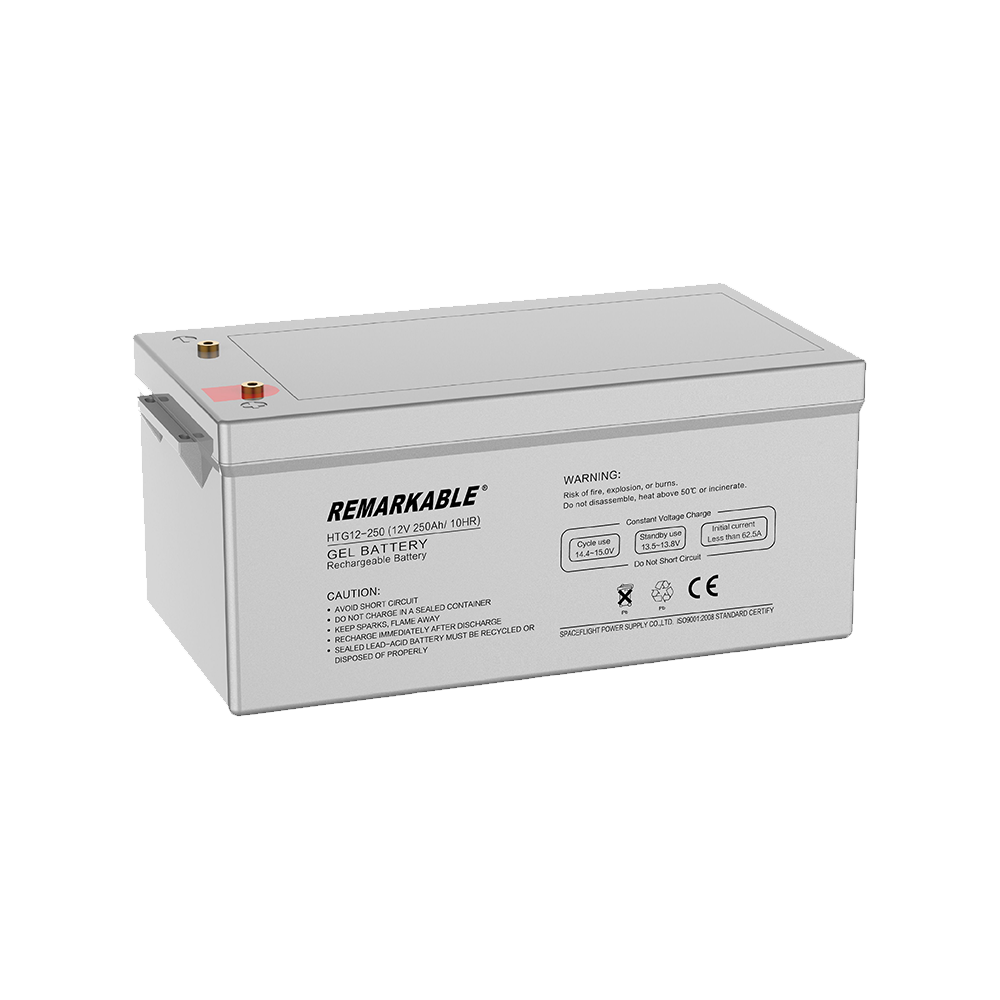

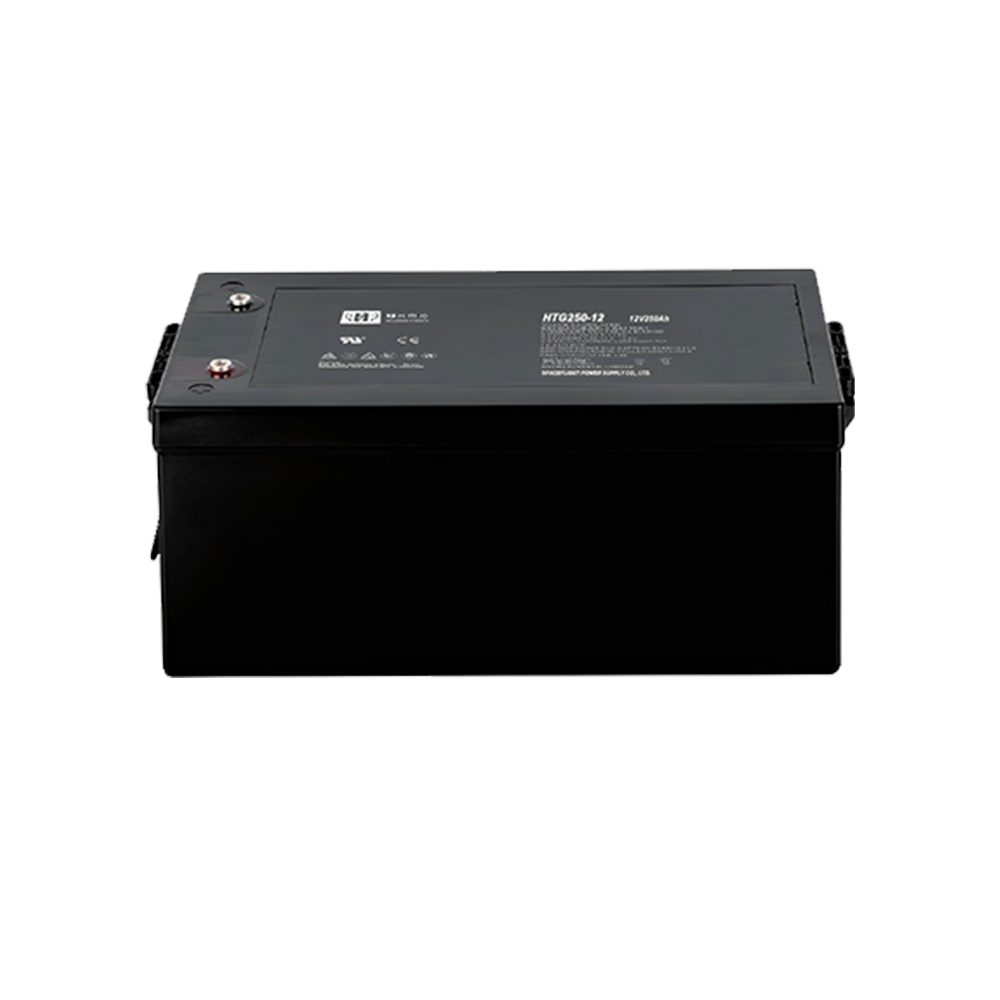

HTG12-250	12	250	522	20.55	270	10.63	221	8.70	224	8.82	75.00	165.35	F10

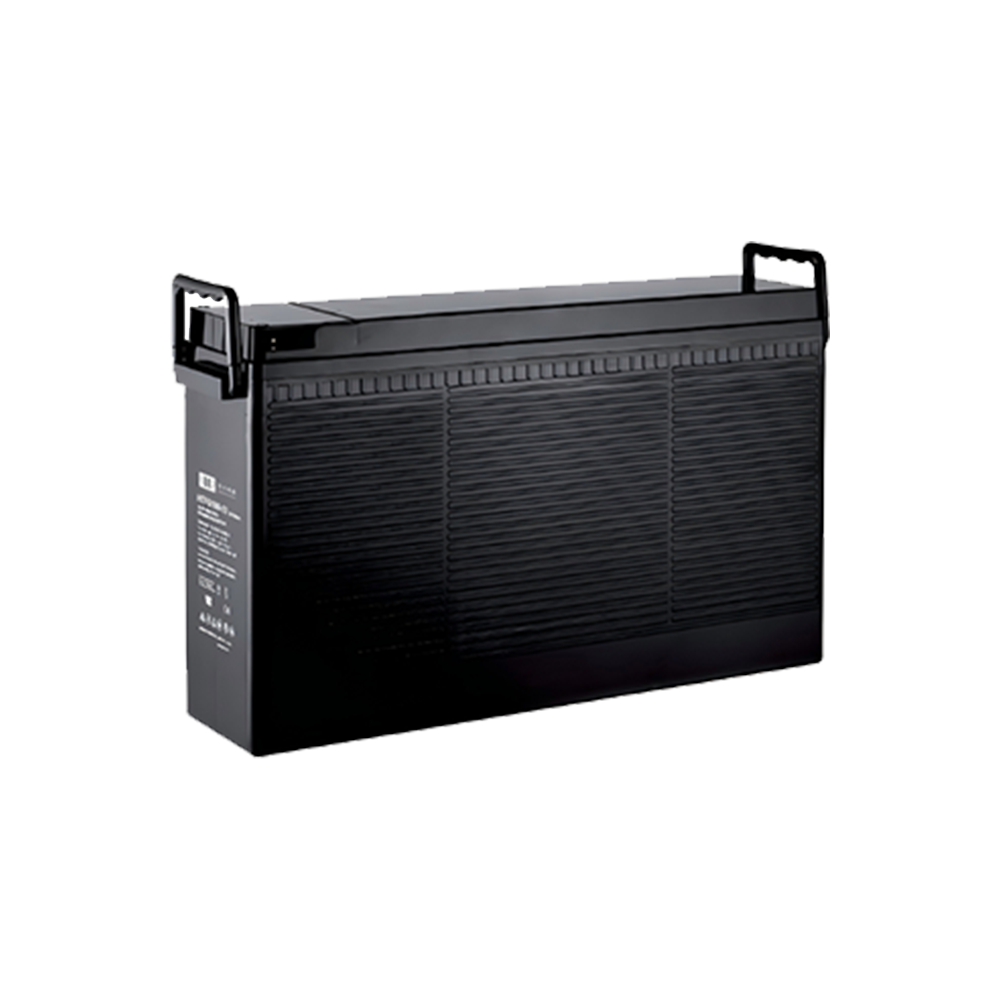

HTG12-150FT	12	150	565	22.24	110	4.33	295	11.61	295	11.61	47.00	103.62	F10
HTG2-100	2	100	171	6.73	72	2.83	206	8.11	206	8.11	6.00	13.23	F7/F14
HTG2-150	2	150	171	6.73	102	4.02	204	8.03	204	8.03	8.50	18.74	F7/F14
HTG2-200	2	200	172	6.77	110	4.33	328	12.91	328	12.91	14.00	30.86	F7/F14
HTG2-300	2	300	171	6.73	150	5.91	330	12.99	330	12.99	19.50	42.99	F8/F15
HTG2-400	2	400	211	8.31	175	6.89	332	13.07	332	13.07	26.50	58.42	F8/F15
HTG2-500	2	500	241	9.49	172	6.77	354	13.94	354	13.94	31.50	69.45	F9/F15
HTG2-600	2	600	301	11.85	174	6.85	342	13.46	342	13.46	38.00	83.78	F9/F15
HTG2-800	2	800	410	16.14	175	6.89	340	13.39	340	13.39	53.50	117.95	F9/F15
HTG2-1000	2	1000	476	18.74	174	6.85	338	13.31	338	13.31	64.00	141.10	F10/F15
HTG2-1500	2	1500	400	15.75	350	13.78	340	13.39	340	13.39	97.00	213.85	F10/F15
HTG2-2000	2	2000	485	19.09	350	13.78	345	13.58	345	13.58	130.00	286.60	F10/F15
HTG2-3000	2	3000	710	27.95	350	13.78	345	13.58	345	13.58	198.00	436.52	F10/F15

GE (GEL) series is designed for solar and other renewable energy system applications with a 10 year design life. it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the GE series offers excellent recovery after deep discharge under frequent cyclic discharge use, and can deliver over 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.

General Features：
● Structure
The effective mechanical design presents a robust structure and higher energy density.
● Separator
High-temperature stability, mechanical strength and low acid displacement.
● GEL Electrolyte
Gelified electrolyte suspends acid stratification, and does not need to be replenished, because it does not evaporate.
● Ventilation
High-quality vent valve with low tolerances in opening and closing pressure reduces the gassing rate significantly.

Spaceflight Power Gel Battery Applications

Communication and telecommunication control equipment
Emergency and security systems, including fire and alarm systems
Electric power systems, including power stations and nuclear power stations
Renewable energy systems like solar and wind power
Marine and medical equipment
Uninterruptible power supplies
